SS Grating Clamps

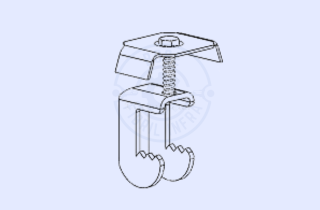

G Clips
G clips are grating fasteners used for securing grating to structural member flange. G clip is fast, easy and the most dependable way of fastening Steel bar gratings without the need for drilling

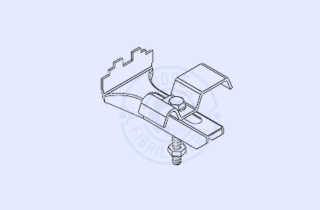

Saddle Clips
Saddle clips or hold-down clips, secure gratings to the structural support using 2 adjacent bearing bars. These saddle clips provide an excellent hold-down capability for all types of steel and aluminium bar gratings.

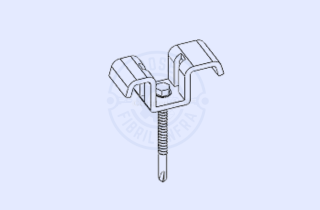

Deep Saddle Clip
Deep Saddle clips are primarily used when fixing has to be done directly into the structural member with a self drilling screw/TEK screw. Deep saddle clips are preferred as it sits further deeper into the floor gratings providing a superior hold.

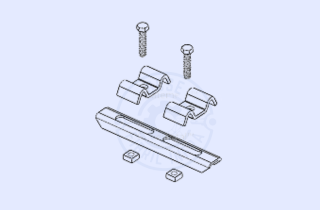

Joining Clip
Double clamp also referred to as Bridging clamp is an assembly designed for joining two steel bar gratings panels from the underside along with two saddle clips over the floor grating. The double clamp assembly comes with saddle clips & fasteners.

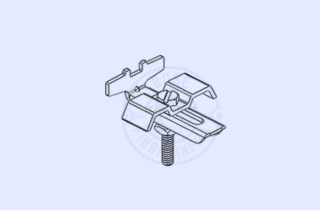

Flooring Clip
Flooring Clip or Floor grating clip is the most common style of grating clip for holding down open steel flooring. It provides a quick, easy & cost-effective method of installing steel grating to an existing steel structure

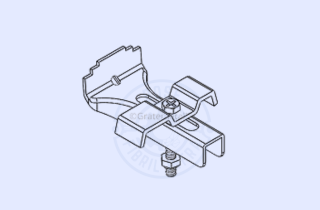

Bar Grating Clip
Bar Grating clips are anchoring devices used to secure gratings to the support structures. Whether it is used for permanent or temporary installation of bar gratings, it offers excellent ease of ability to fasten or remove the steel bar gratings.

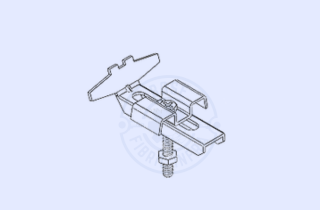

Galvanized Grating Clip
Galvanized Grating Clip is used to secure open steel flooring to the existing structural member while facilitating quick, easy & cost-effective way of fastening. Galvanized grating clips are suitable for installing gratings from the top side only.
Grating Fixing Clip
Grating fixing clips also referred to as universal grating clips are the most common method for fixing open mesh steel flooring with the structural member without the need for drilling. It is also termed as universal grating fixing clip set.
